Smart Digital Multimeter ANENG 600V AC/DC Voltage multimetro 2000 Count 10A DC Current Testing Ohm Resistance Diode test Tools
Smart Digital Multimeter ANENG 600V AC/DC Voltage multimetro 2000 Count 10A DC Current Testing Ohm Resistance Diode test Tools
SPECIFICATIONS
AC Current: /

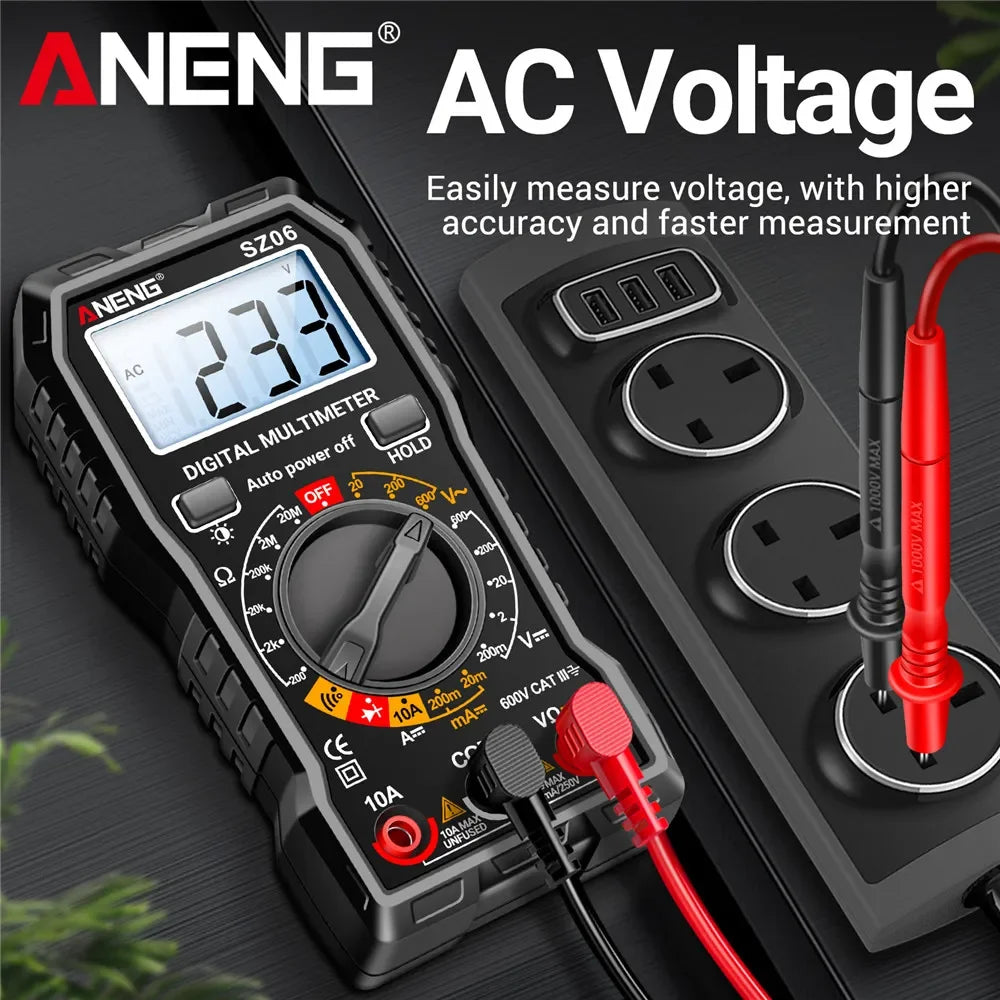

AC Voltage: 20V-600V
AC/DC Voltage: Yes
Battery Included: No
Brand Name: ANENG
Certification: CE
Choice: yes
Counts: 2000 Counts
DC Current: 20mA-10A,Yes
DC Voltage: 200mV-600V
DIY Supplies: Electrical

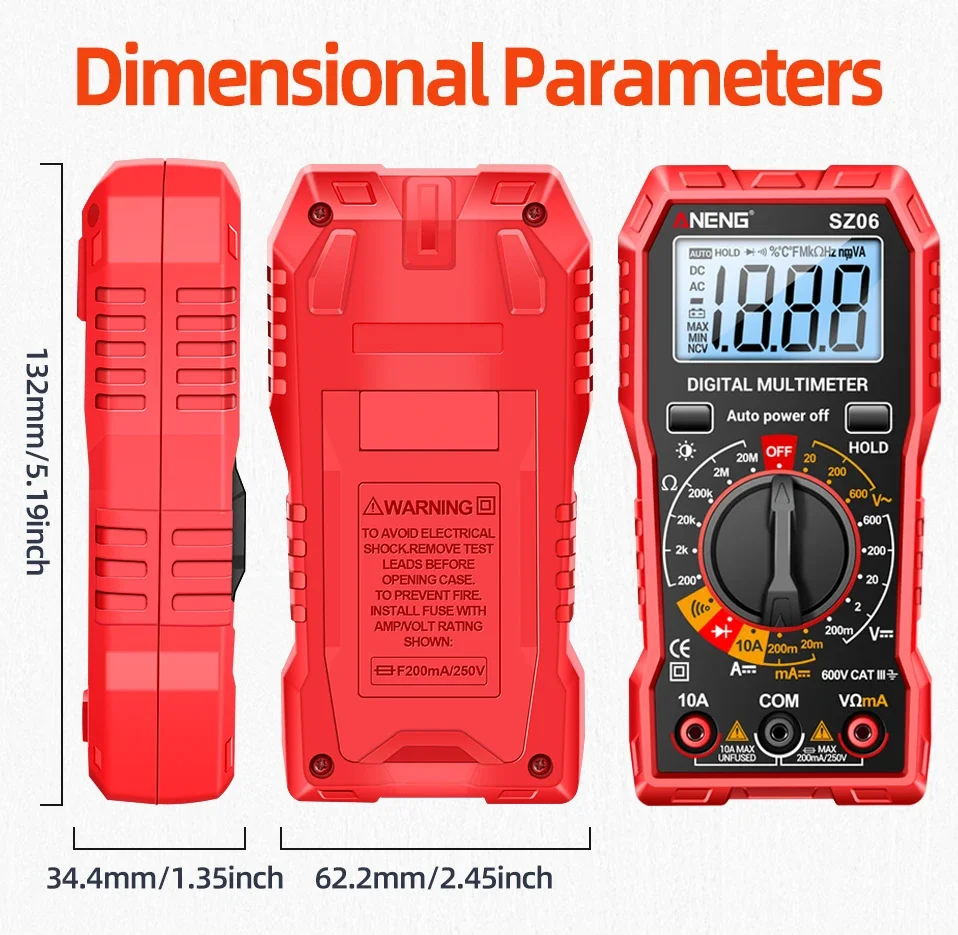

Dimensions: --
Display Type: Digital Display
High-concerned chemical: None
Is Smart Device: No
Measuring Capacitance Range: /
Measuring Inductance Range: /
Measuring Resistance Range: 0-20M ohm
Model Number: ANENG SZ06 Multimeter
Operating Mode: Manual Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Resistance: Yes
data retention: Yes
diode: Yes

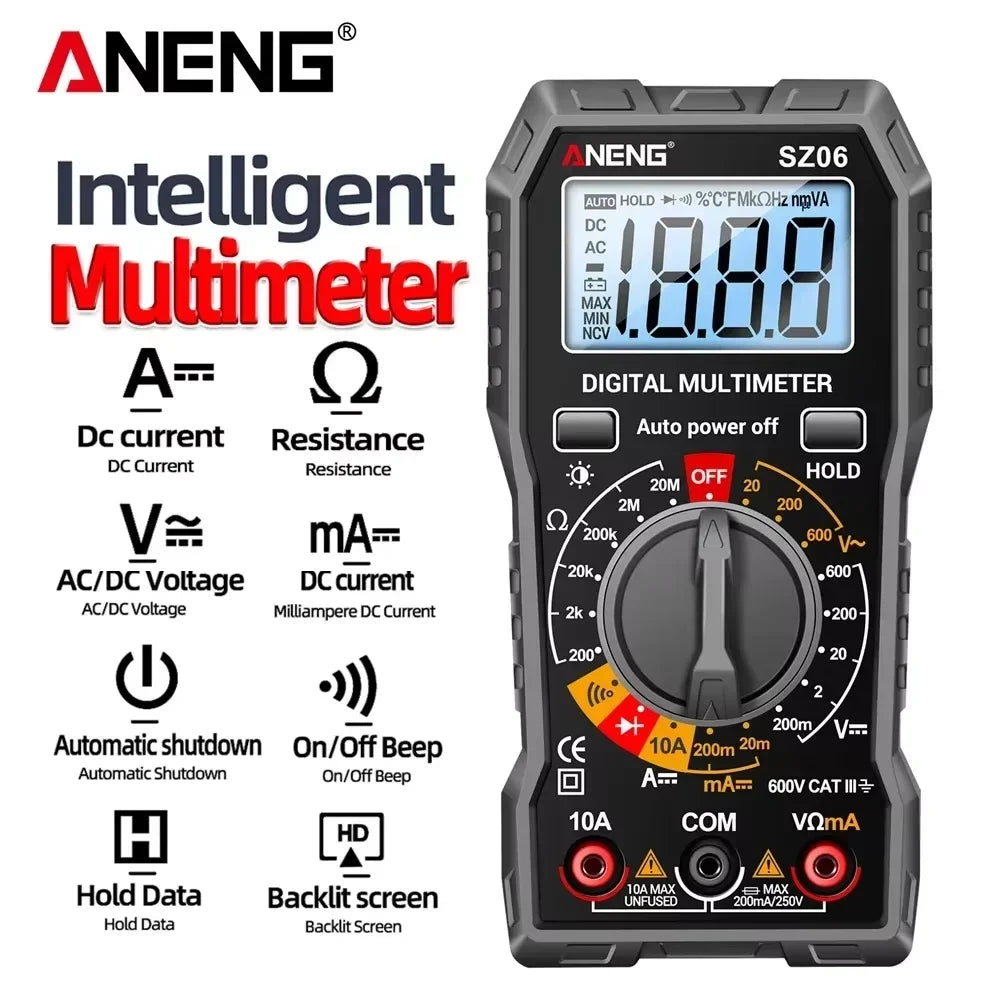

Smart Digital Multimeter 2000 Count 600V AC/DC Voltage Meter 10A DC Current Ohm Resistance Diode Measuring Test Tools

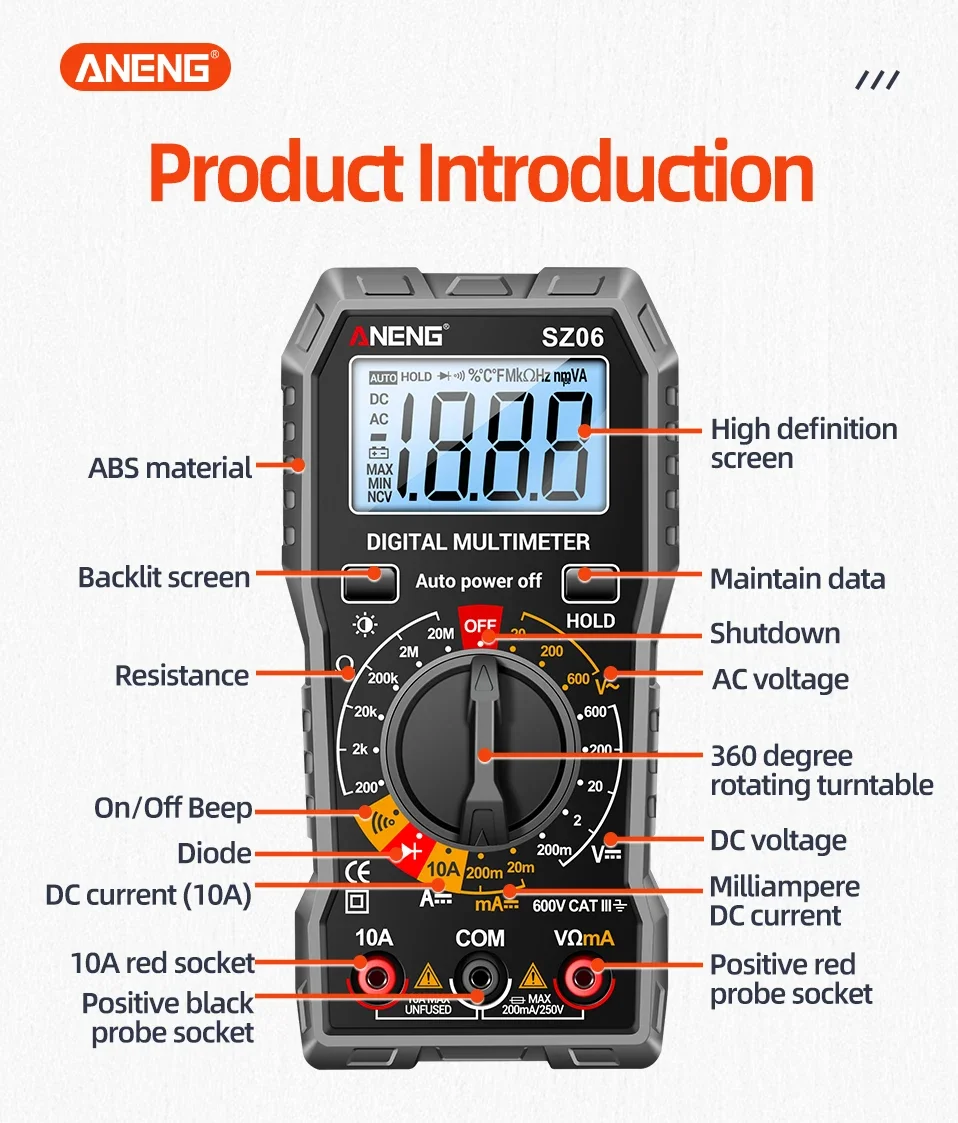

A.Overview:
Automatic selection of measuring function and range.
Full range oveload protection.

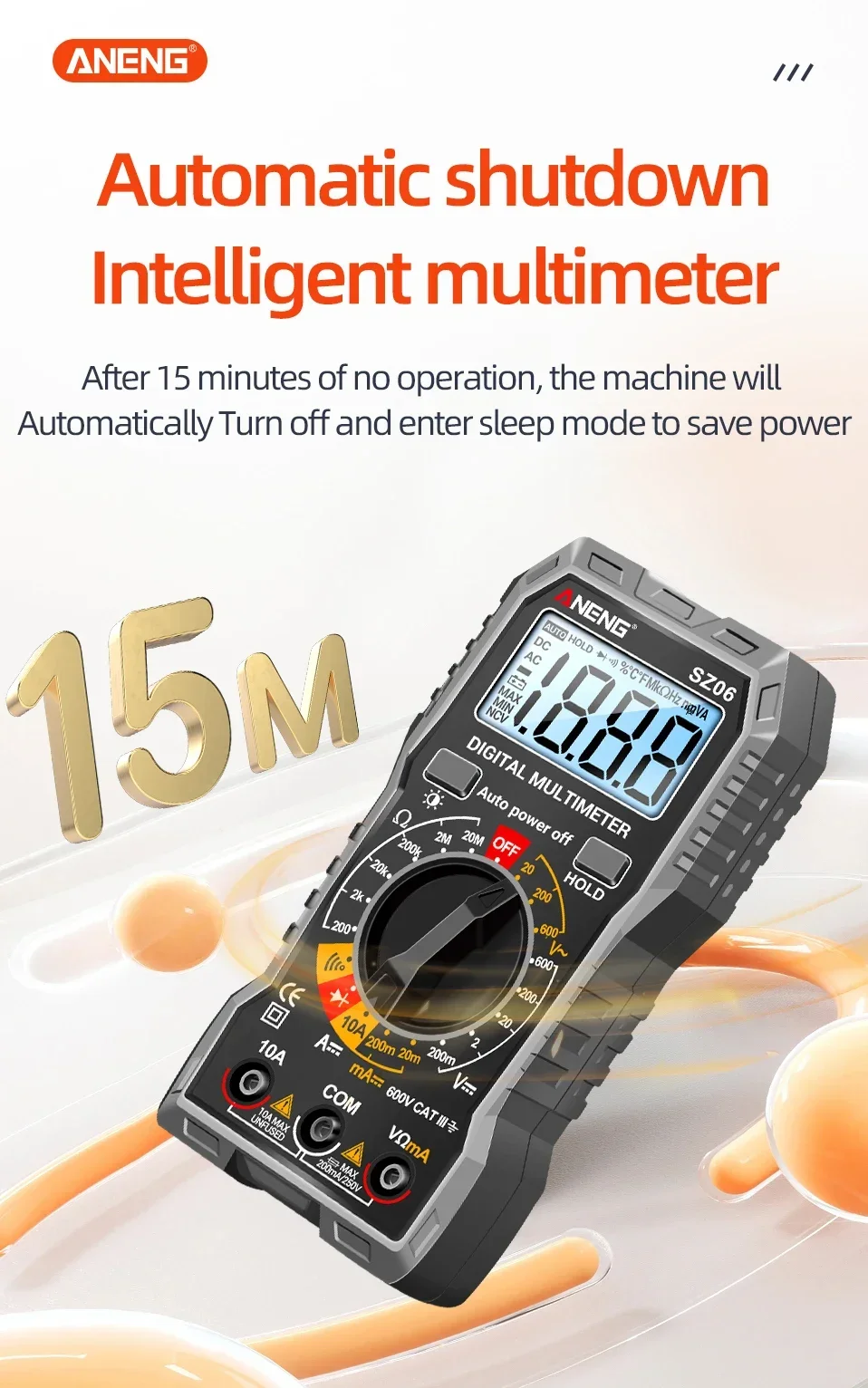

Automatic shut down time:15 minutes
Sampling time: about 3 times/second
power supply:2*1.5V AAA Battery (Ship without battery)
SZ06:The max voltage between the measuring end and the ground is 600V DC or 600V AC.

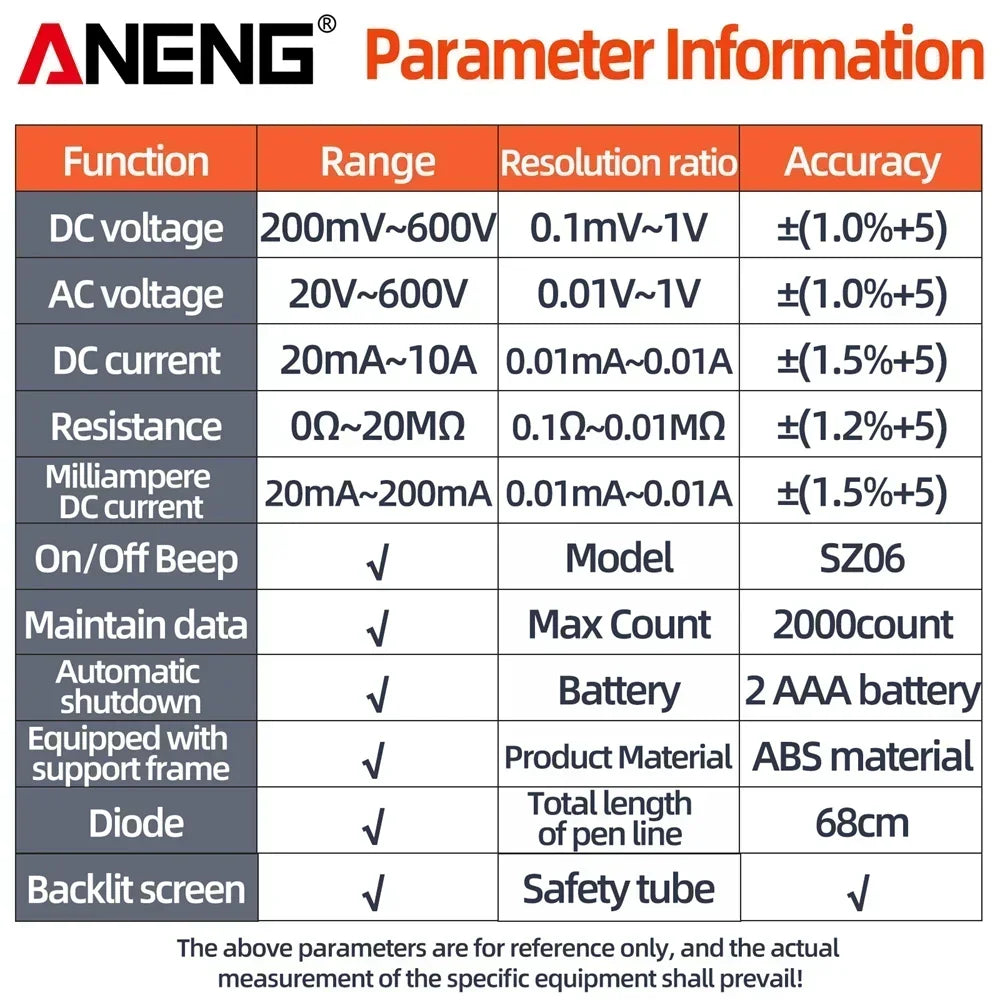

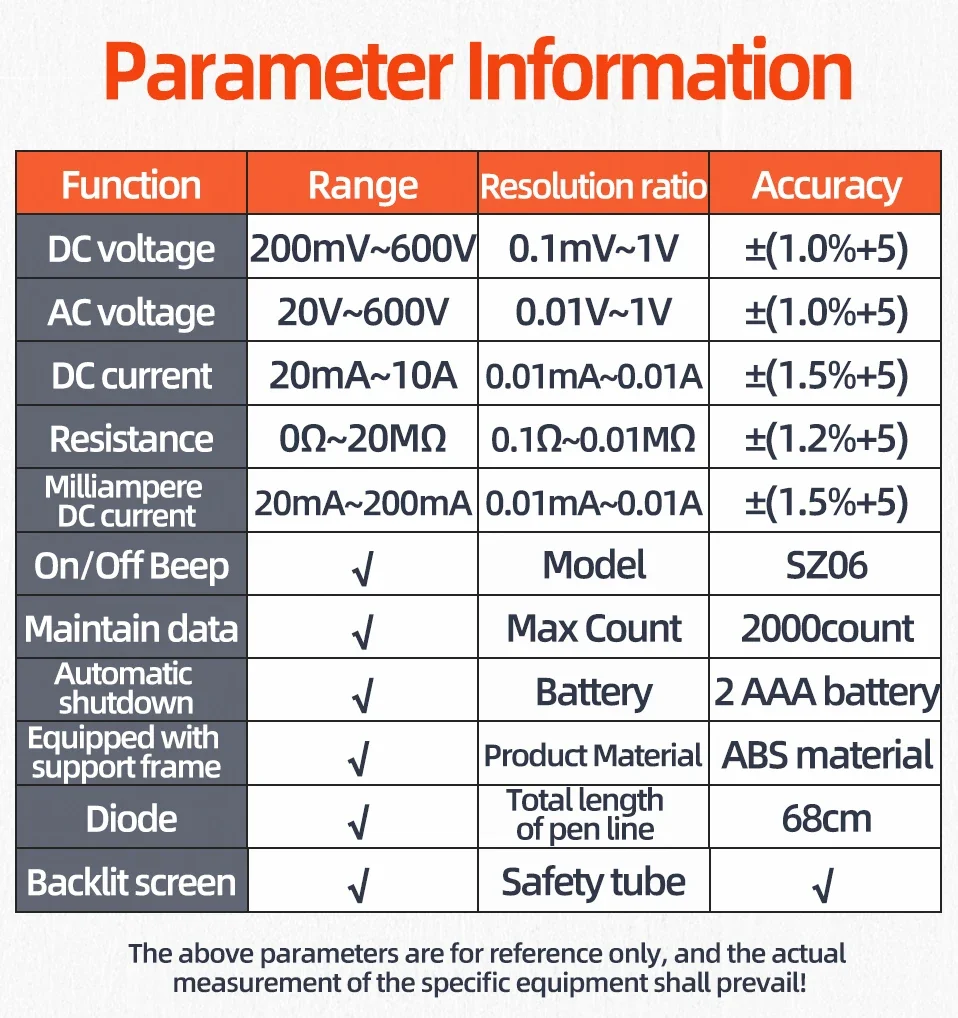

B.Specification:

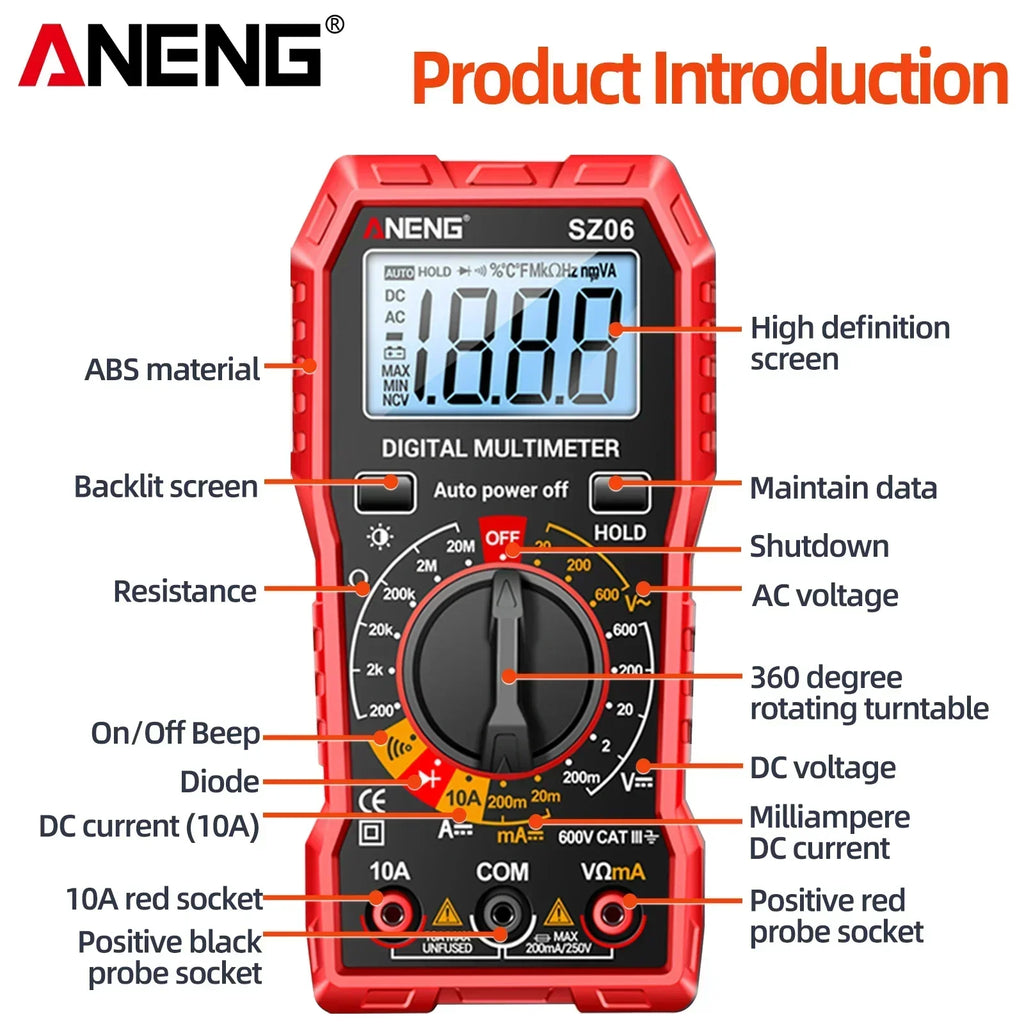

Function |
Range |
Resolution ratio |
Accuracy |

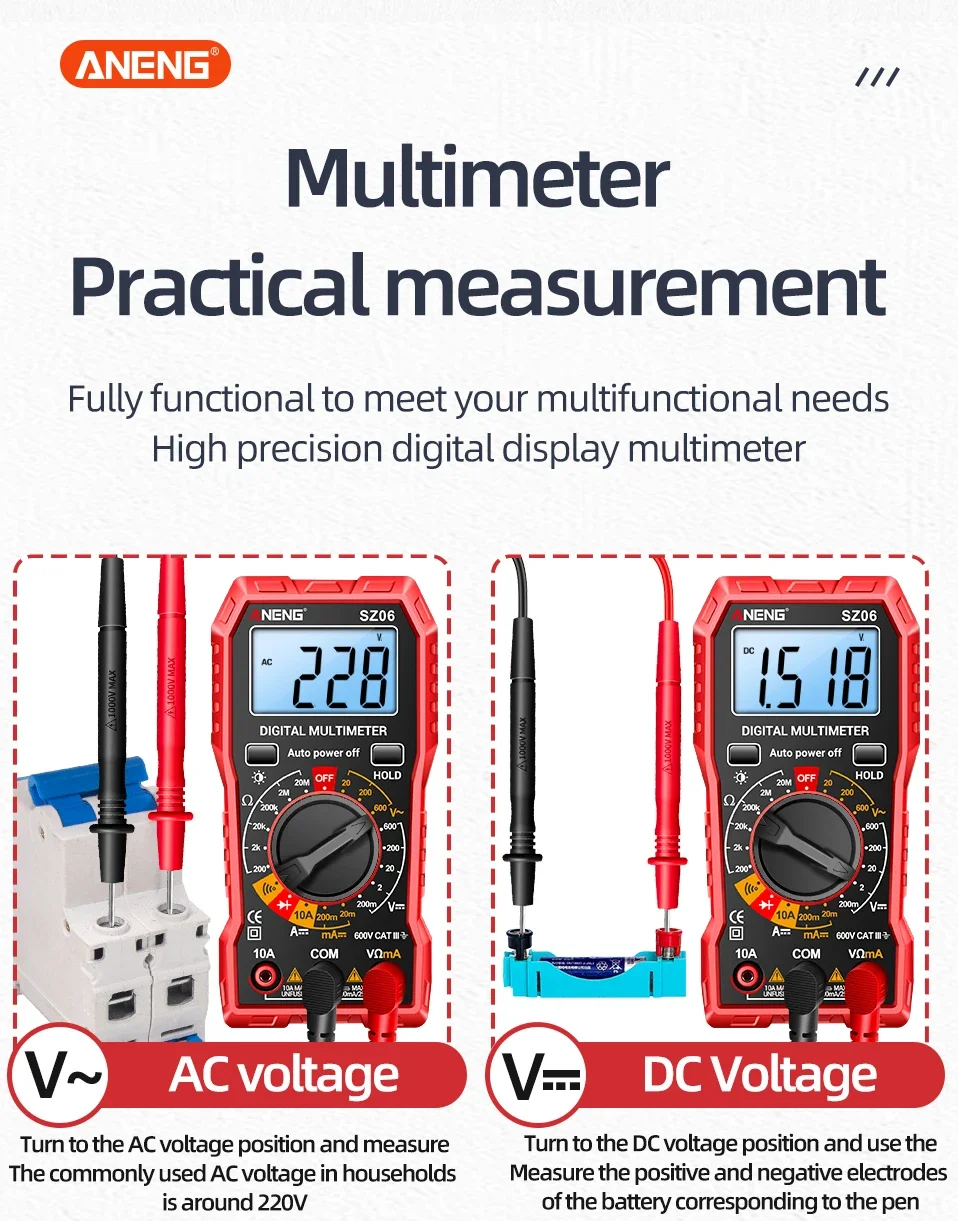

DC voltage |
200mV~600V |
0.1mV~1V |
±(1.0%+5) |

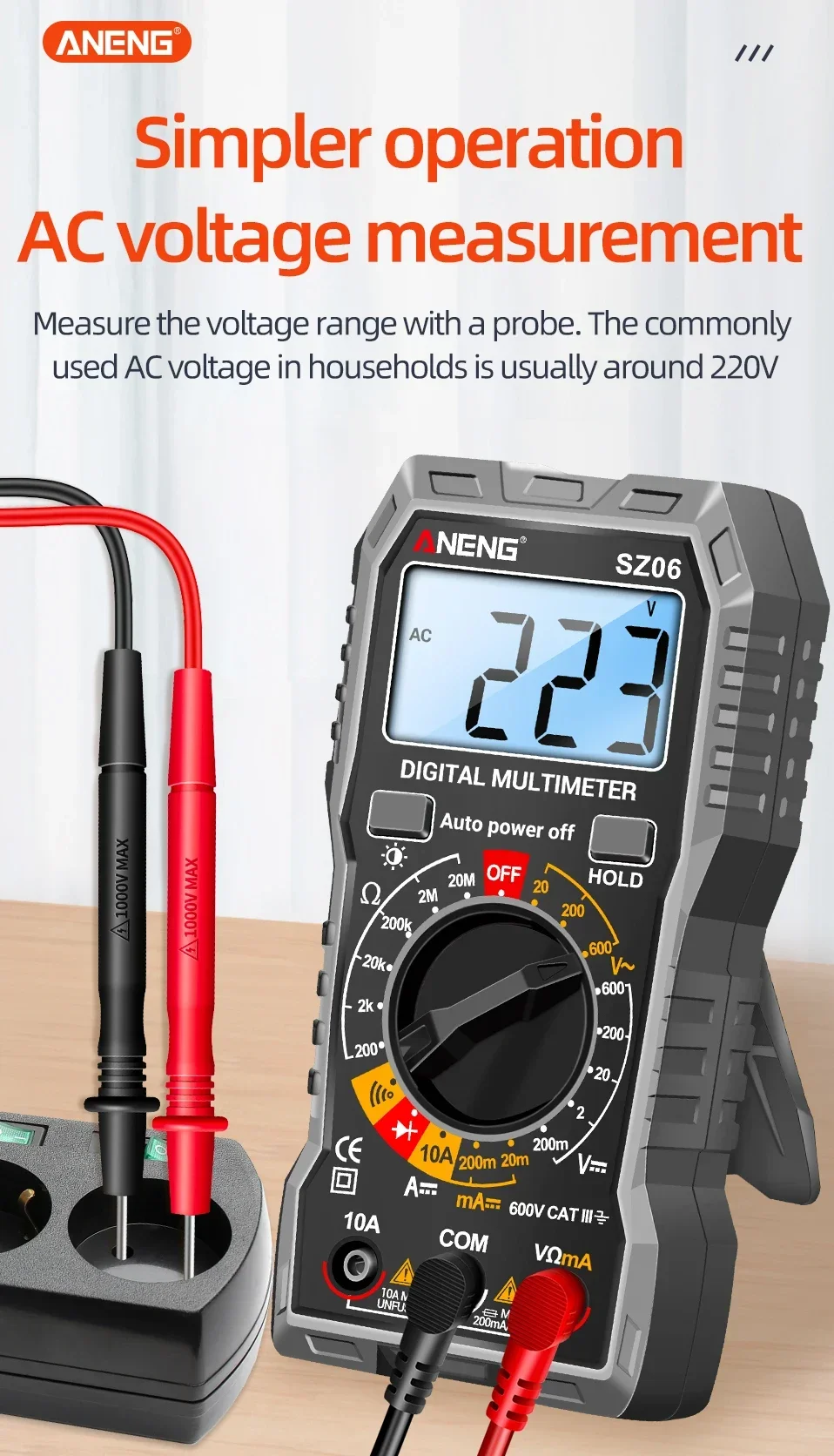

AC voltage |
20V~600V |
0.01V~1V |
±(1.0%+5) |

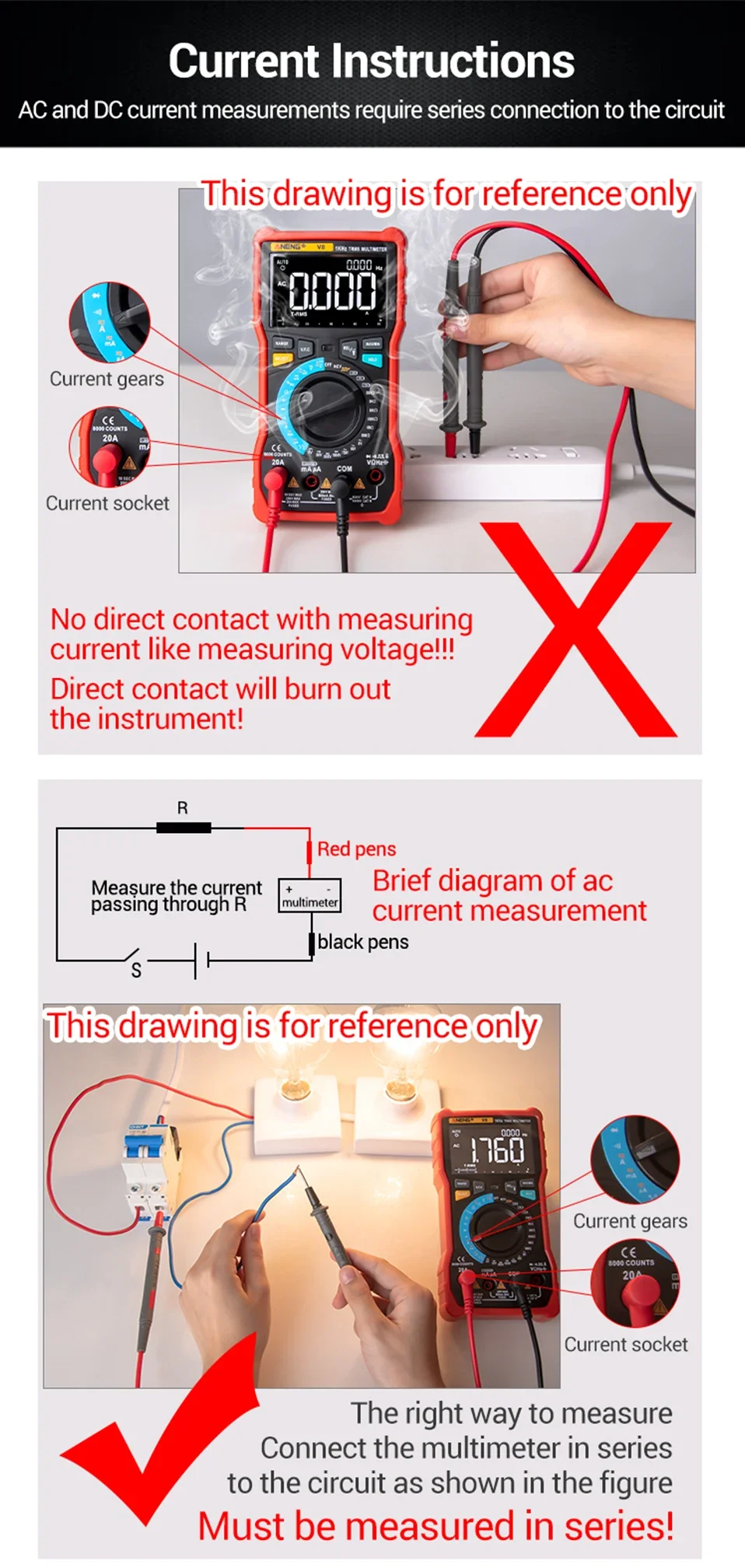

DC current |
20mA~10A |
0.01mA~0.01A |
±(1.5%+5) |
Resistance |
0Ω~20MΩ |
0.1Ω~0.01MΩ |
±(1.2%+5) |

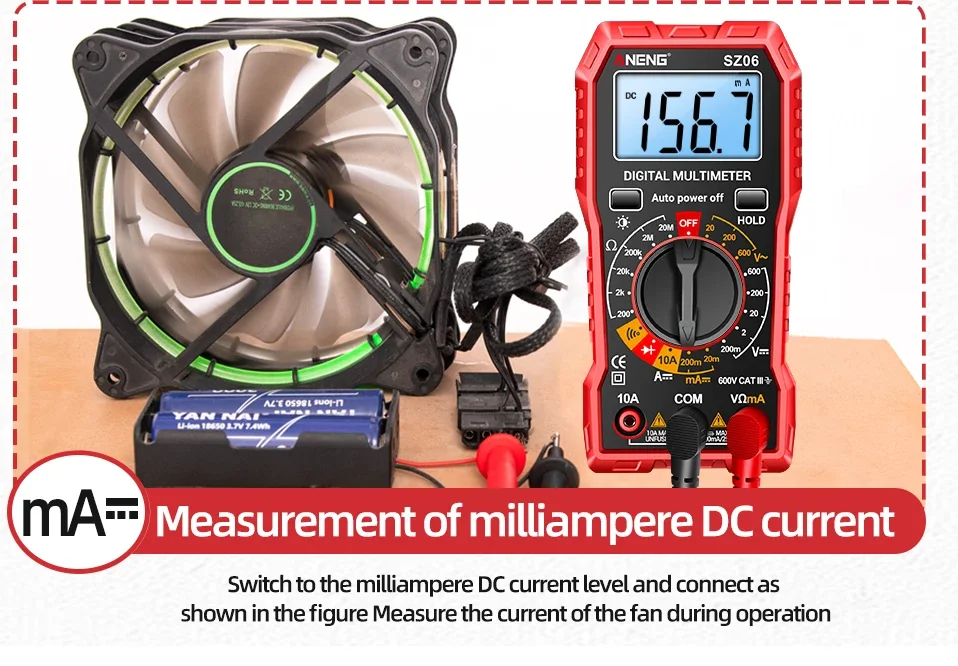

Milliampere |
20mA~200mA |
0.01mA~0.01A |
±(1.5%+5) |
On/Off Beep |
√ |
Model |
SZ06 |
Maintain data |
√ |
Max Count |
2000 count |
Automatic shutdown |
√ |
Battery |
2 AAA battery |
Equipped with |
√ |
Product Material |
ABS material |

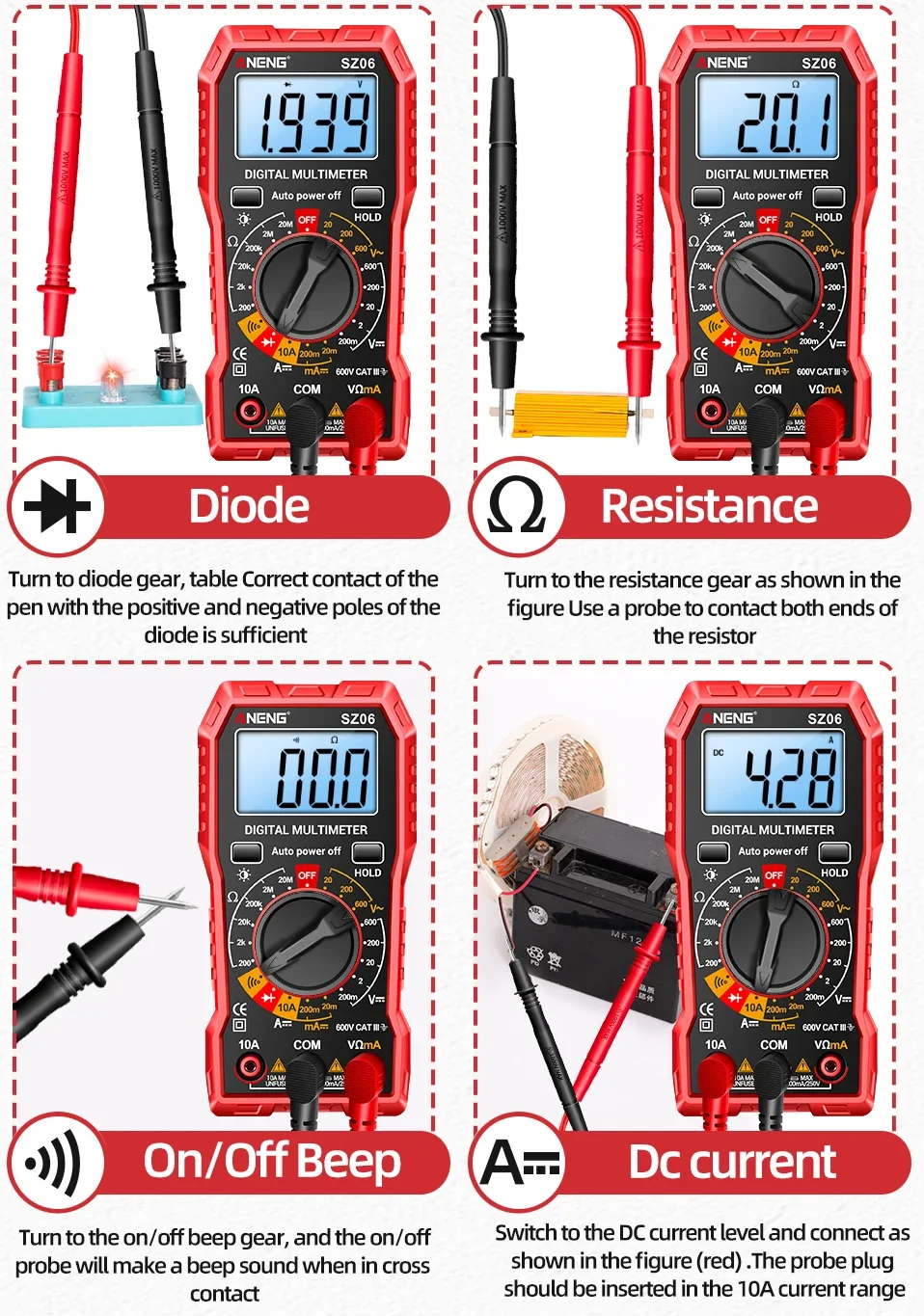

Diode |
√ |
Total length of pen line |
68 cm |

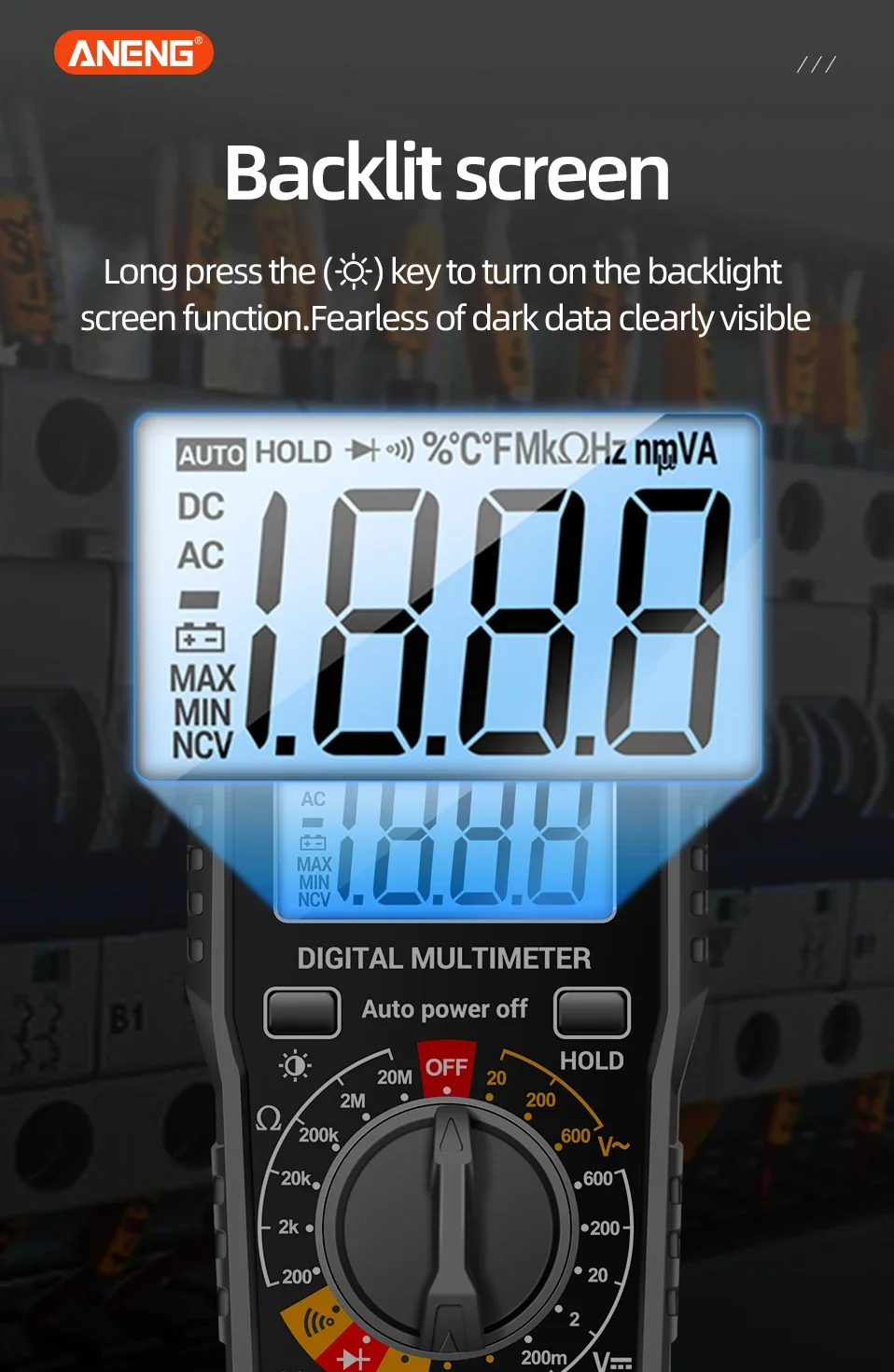

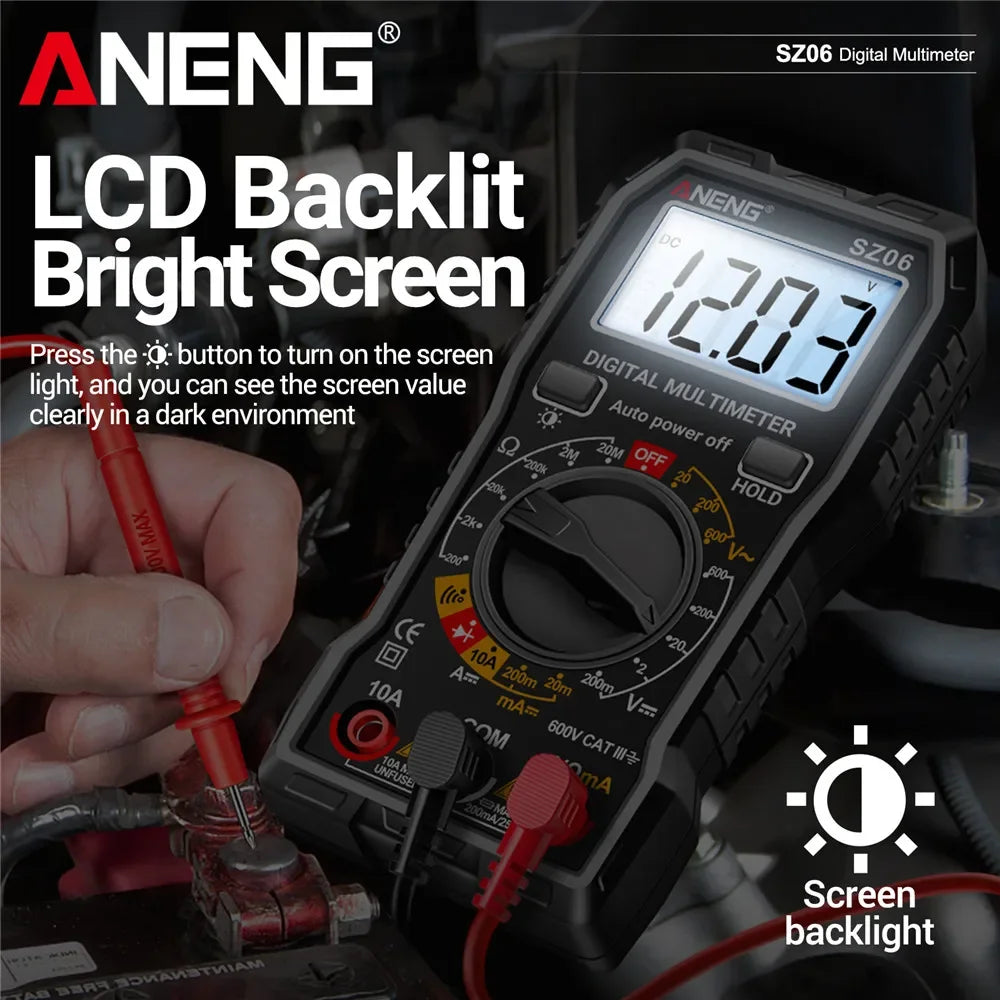

Backlit screen |
√ |

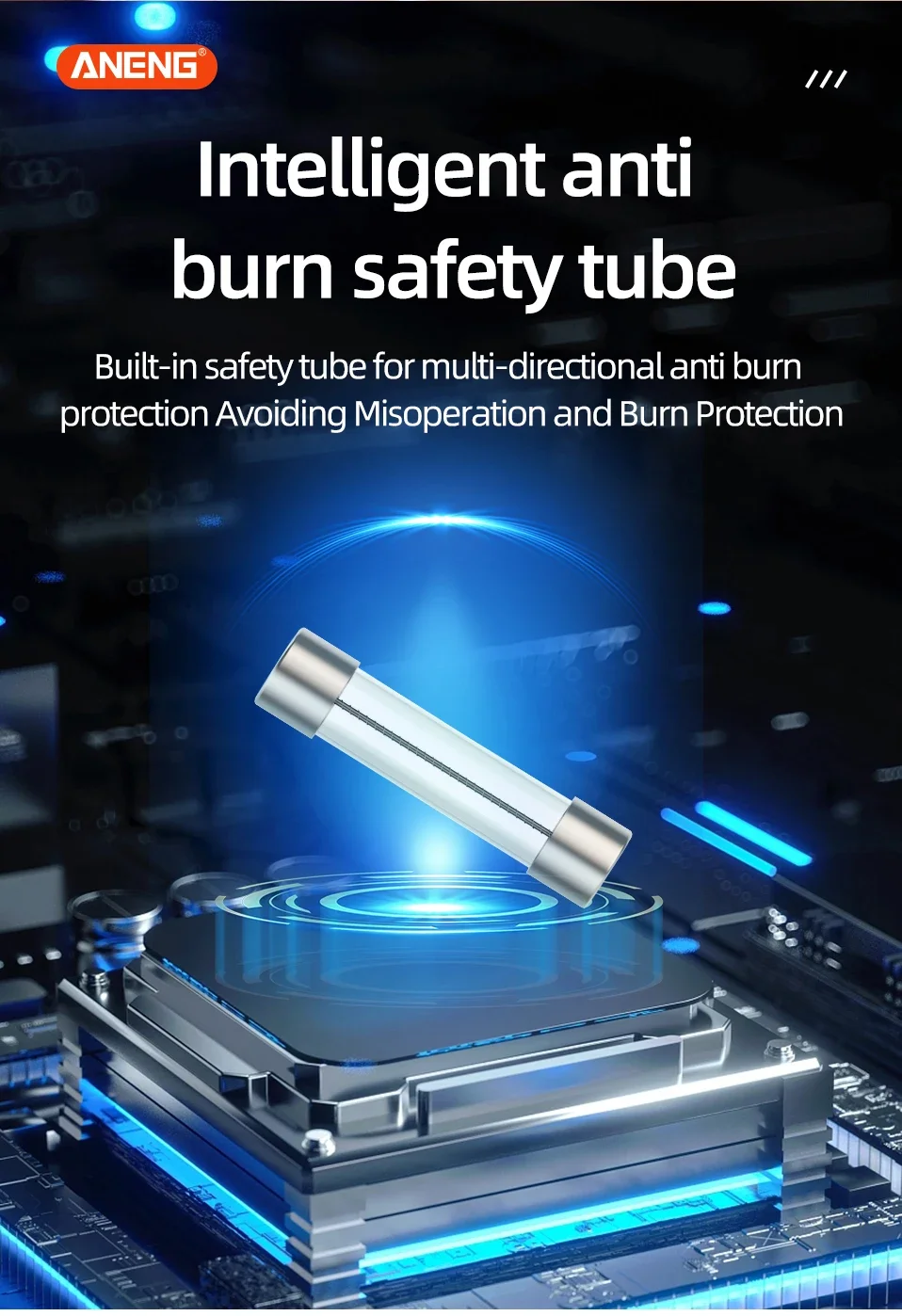

Safety tube |
√ |

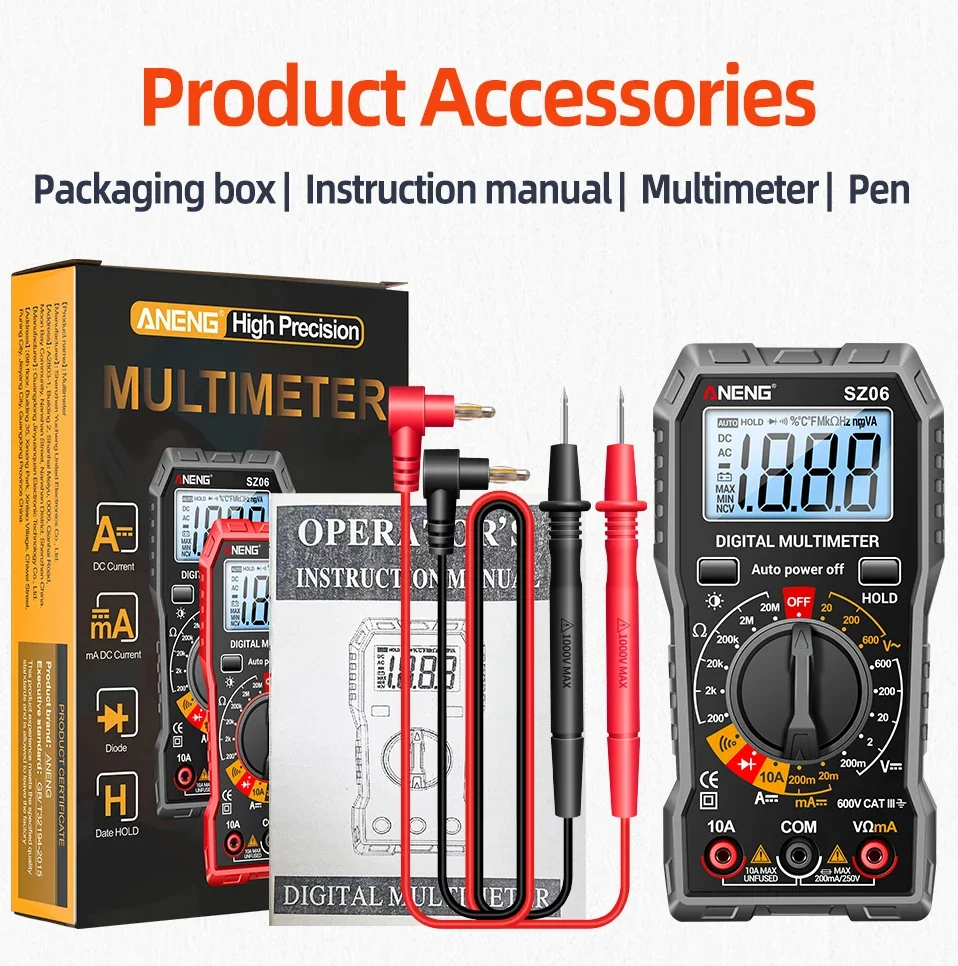

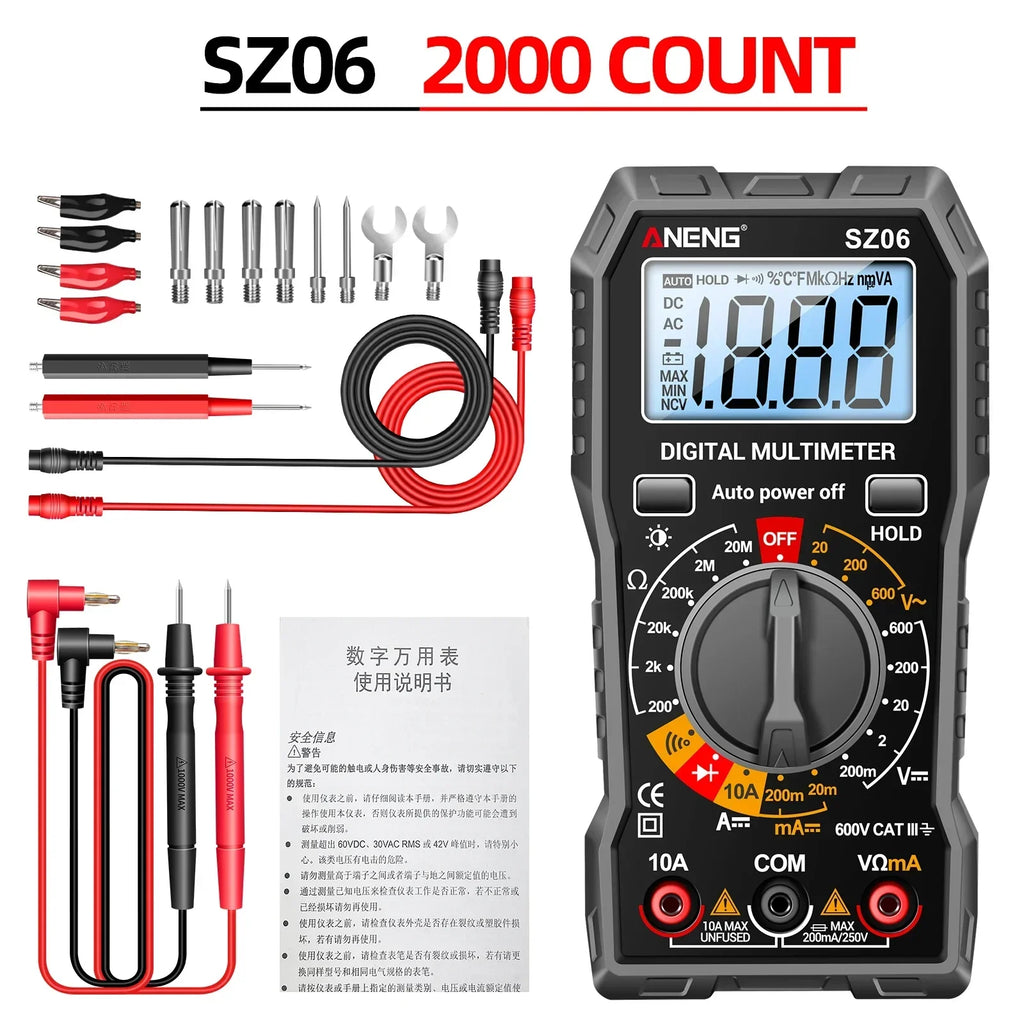

C.Package Include:（Without Battery）
According to your choice
