ANENG SZ303 Smart Digital Multimeter 1999 Count Professional AC/DC Voltage Current Electrical Data Retention High Precision Tool
ANENG SZ303 Smart Digital Multimeter 1999 Count Professional AC/DC Voltage Current Electrical Data Retention High Precision Tool
SPECIFICATIONS
AC Current: 200uA-10A
AC Voltage: 0mV-600V
ANENG Model: SZ303
Auto power off: 15 If there is no operation,it willautomatically shut down
Back support frame: Yes
Battery Included: No
Brand Name: ANENG
Buzzer: Yes
Certification: NONE
Choice: yes
Color: Red Black
DC Current: 200uA-10A
DC Voltage: 0mV-600V
DIY Supplies: Electrical
Diode: Yes
Display Type: Digital Display
High-concerned chemical: None
Material: ABS
Max count: 1999 counts
Measuring Capacitance Range: 0Ω-20MΩ
Model Number: SZ303 Multimeter
NCV: Yes
Operating Mode: Auto Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
ANENG SZ303 Smart Digital Multimeter 1999 Count Professional AC/DC Voltage Current Electrical Data Retention High Precision Tool
Introduction ：
This digital multimeter is designed and produced in accordance with the safety requirements of the international work safety standard IEC-61010 for electronic measuring instruments and handheld digital multimeters.
Complies with the requirements of 600V CAT IV, 600V CAT III and pollution level 2 of IE61010. Before using this instrument, please carefully read the user manual and pay attention to relevant safety work guidelines.

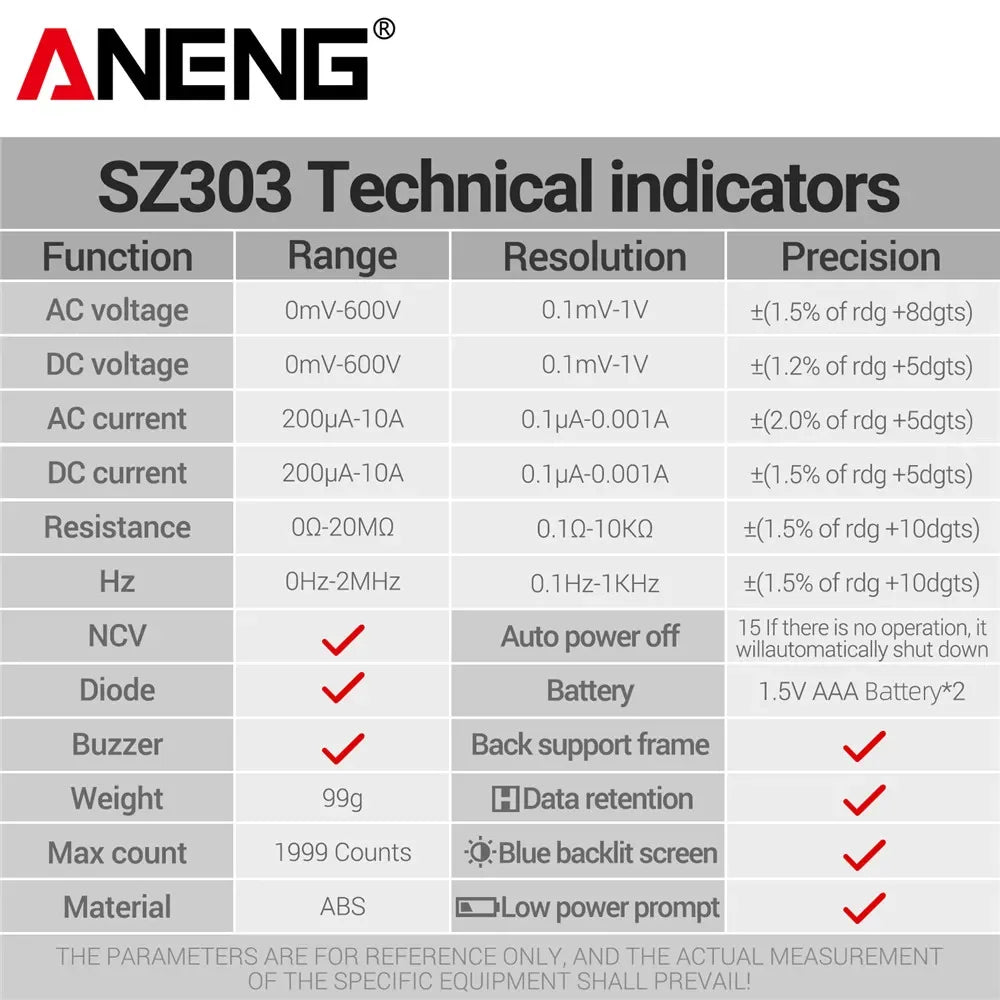

Feature:
Function |
Range |
Resolution |
Precision |
VC voltage |
0mV-600V |
0.1mV-1V |
±(1.5% of rdg +8dgts) |
DC voltage |
0mV-600V |
0.1mV-1V |
±(1.2% of rdg +5dgts) |
AC current |
200μA-10A |
0.1μA-0.001A |
±2.0% of rdg +5dgts) |
DC current |
200μA-10A |
0.1μA-0.001A |
±(1.5% of rdg +5dgts) |
Resistance |
0Ω-20MΩ |
0.1Ω-10KΩ |
±(1.5% of rdg +10dgts) |
Hz |
0Hz-2MHz |
0.1HZ-1KHZ |
±(1.5% of rdg +10dgts) |
NCV |
√ |
Auto power off |
15 lf there is no operation, itwillautomatically shut down |
Diode |
√ |
Battery |
1.5V AAA Battery*2(without shipment) |
Buzzer |
√ |
Back support frame |
√ |
Weight |
99g |

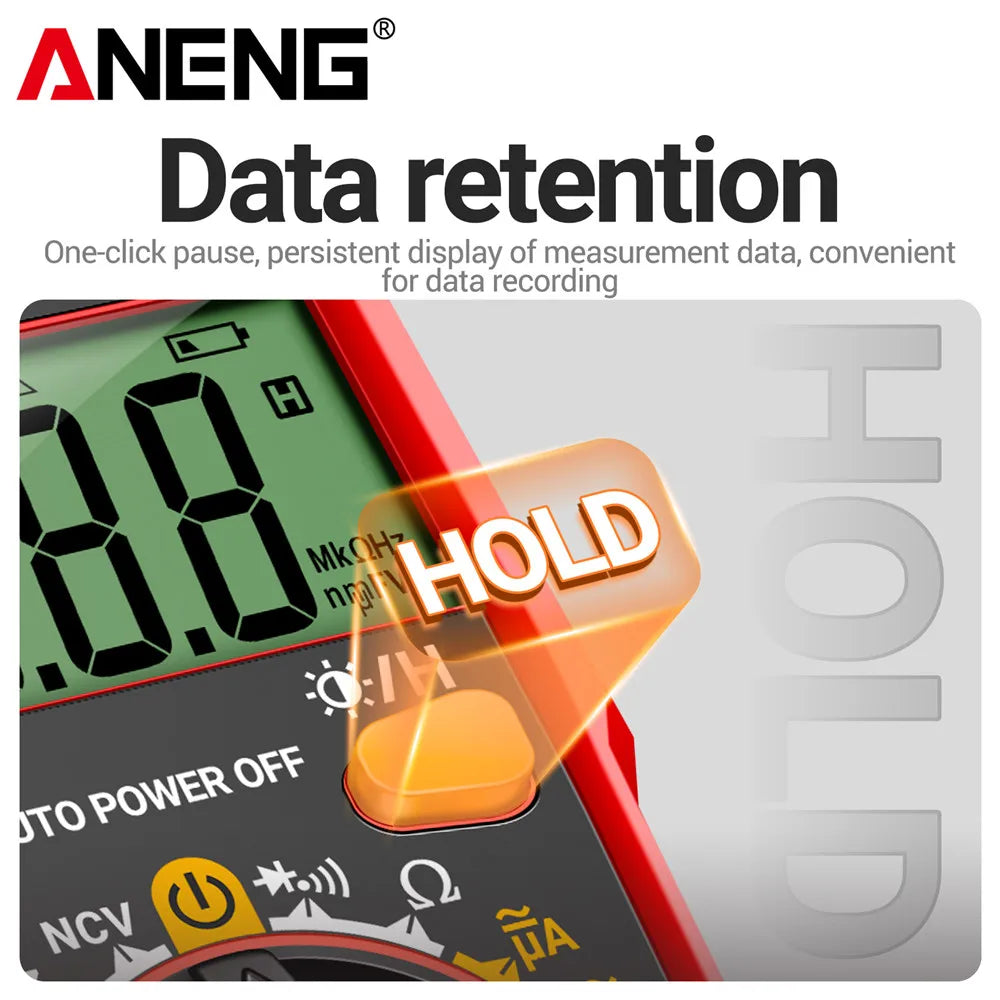

Data retention |
√ |
Max count |
1999 Counts |
Blue backlit screen |
√ |
Material |
ABS |
Low power prompt |
√ |

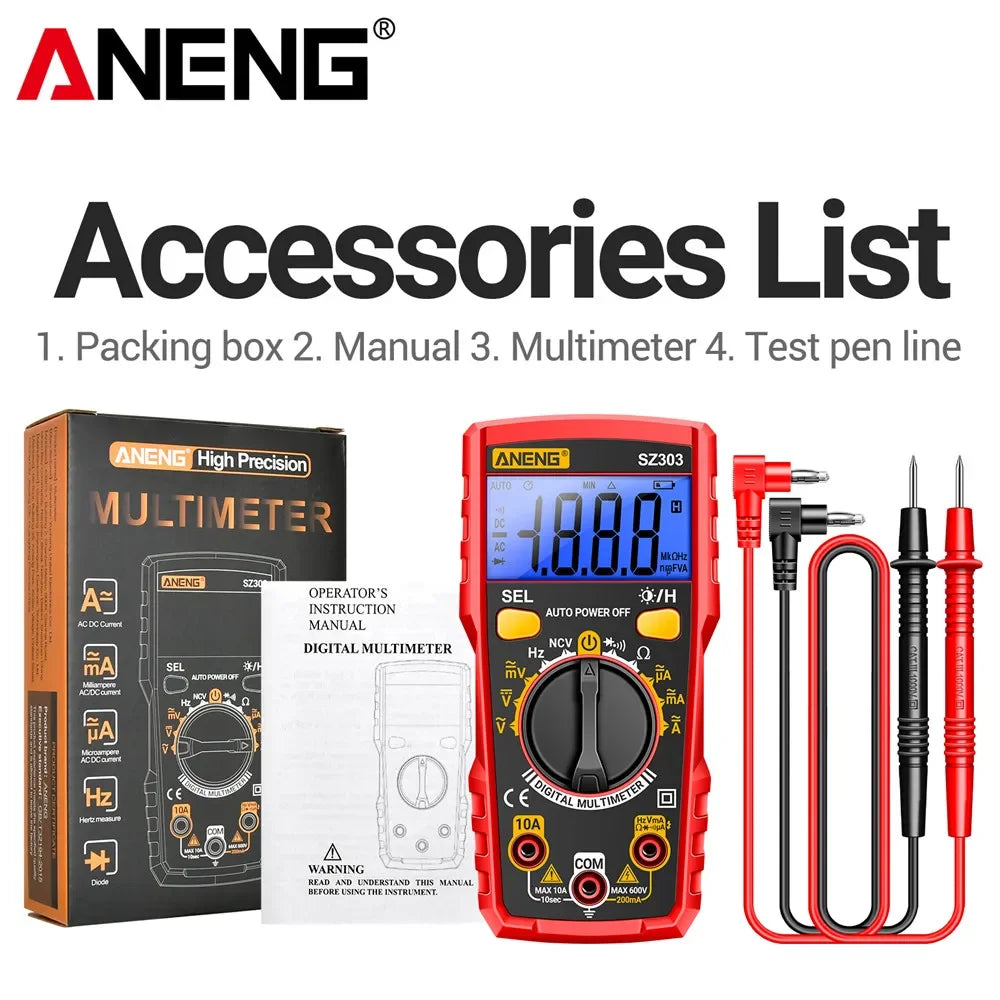

Package:（Without Battery）
1 * Multimeter
1 * Test pen line
1 * Manual
1 * Packing box
